Crown Aggregates Project
200 TPH fixed plant | Full water treatment | Filter press
Case Study Overview
Install Location
United Kingdom
Plant Type
Fixed Plants
Tonnes Per Hour
200
Case Study Summary
WHAT HAPPENED
Crown took high-clay material and high sludge volumes, and turned it into drier cake and more washed tonnes per day.
This site runs historic, clay-rich material and needed better fines handling to support higher daily washed output. The solution was a high-capacity dewatering and water package built around a large over-beam filter press, clarified water storage, and a 500 m³ sludge tank.
Challenge
The bottleneck
Very high silt and clay made sludge hard to dewater and hard to move. Centrifuge cake stayed wet (about 40–45% moisture), which limited stockpile space and disposal options, and capped daily washed tonnage because sludge handling could not keep up.
THROUGHPUT PROFILE
- Silt: ~26–27%
- Clay: ~30% of the silt fraction (down to -2 micron)
Solution
What was installed
To remove the constraint and stabilize plant operation, the site added:

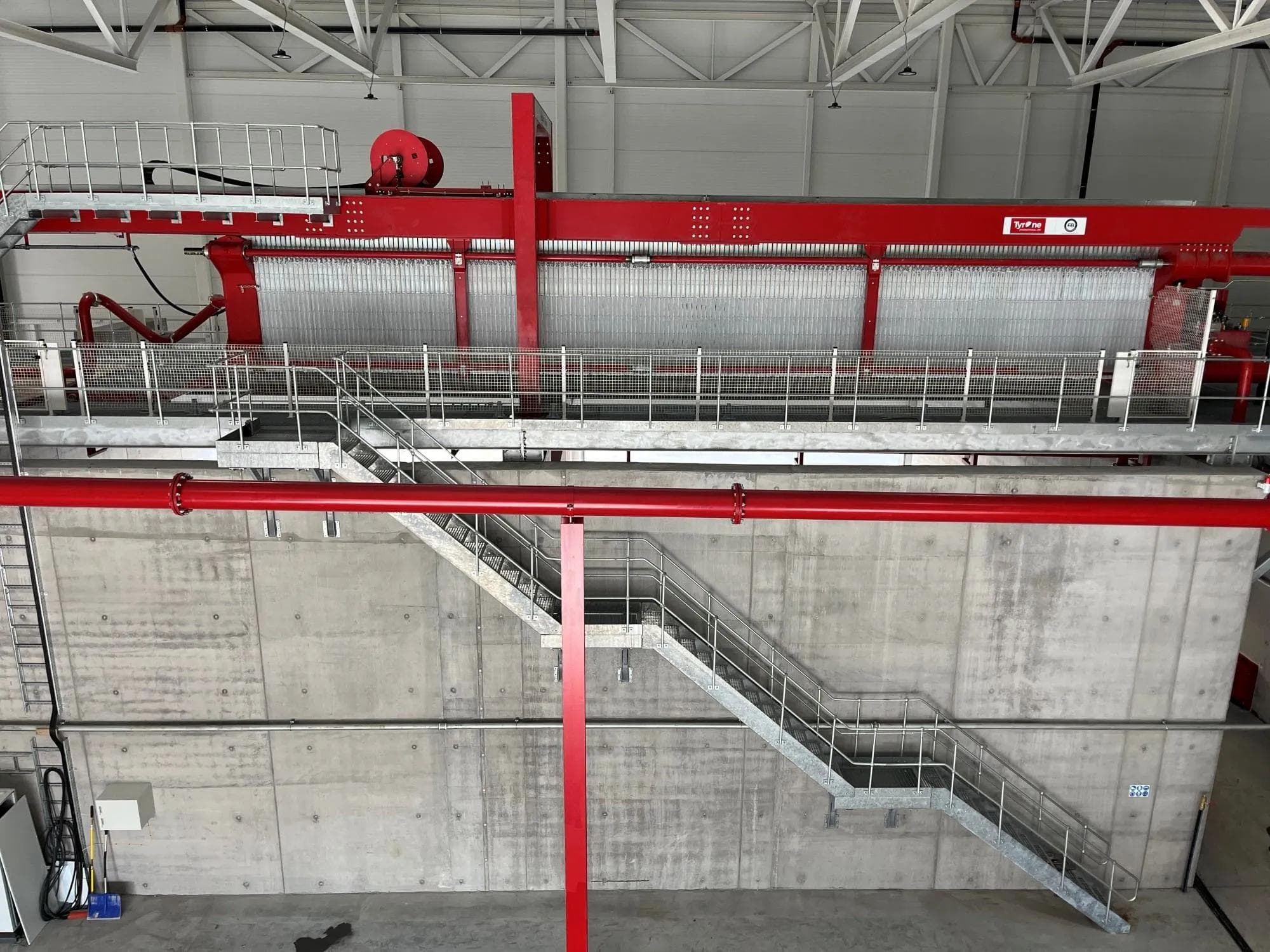

Large over-beam filter press (largest UK installation) Clarified water tank to stabilize water supply 500 m³ sludge tank to buffer high-volume sludge handling.
What it changed
The system produced a significantly drier cake, opening better handling and disposal pathways, including export off site.
Easy Numbers
Process Uptime
Service-friendly design means easier access, faster maintenance, and reliable performance shift after shift.
Tonnes Per Hour
More material processed, steadier stockpiles, and a washing operation built to keep up with demand without bottlenecking.
Tonnes Yearly
Quality washed recycled aggregates from scalpings, C&D waste, and trommel fines. Material that previously would’ve gone to landfill.
Results
Key Outcomes
- Drier cake versus the centrifuge process, improving handling and logistics
- More washed tonnes per day by processing higher sludge volumes
- Better disposal flexibility, including applications where impermeable cake is useful
- Reduced maintenance pain through service-friendly access and simpler upkeep
